Product engineering · Kubernetes platform
Production ecosystemRedoxForge Ecosystem
A public information platform backed by self-managed Kubernetes, GitOps delivery, persistent storage, and isolated game services.
Interactive project overview
Explore the system in operation.
These demonstrations present the project's state, timing, and key tradeoffs. The full case study and implementation details follow below.
Problem and objectives.
Players relied on Discord for announcements, game mechanics, and staff support. Durable information was difficult to navigate, and people without an account could not access it.
The first dedicated-server deployment solved the content problem but introduced manual container updates, brief outages, and growing operational overhead as more applications and stateful services were added.
System architecture.
Explore the public product, web request path, GitOps delivery, game workloads, persistent services, and network-policy boundaries.
Interactive architecture
RedoxForge product and platform
The public website and game services share a delivery platform, but use separate request paths, workloads, and state boundaries.
Network Data Approval
PRODUCTPublic information with privileged editing and managed application data.
Selected component
Players & visitors
Announcements, wiki content, and support guidance are readable without requiring a Discord account.
Accessible component list
My responsibilities.
The components I designed, implemented, tested, or integrated.
- 01
Designed the RedoxForge website around public announcements, a wiki, support guidance, user profiles, and authenticated staff editing backed by Supabase.
- 02
Containerized the application and built GitHub Actions workflows that publish multi-architecture images after changes reach the main branch.
- 03
Architected and self-managed a four-node Kubernetes environment after managed cloud offerings proved outside the available budget.
- 04
Used Argo CD and digest-based image reconciliation to replace manual Docker Compose refreshes and reduce deployment interruption.
- 05
Provisioned stateful game, PostgreSQL, and SFTP workloads with Longhorn-backed claims and redundant object-storage backups.
- 06
Defined ingress, service-account, RBAC, and Calico policy boundaries while excluding private addresses and connection details from this case study.
Key engineering decisions.
The constraints and tradeoffs that shaped the implementation.
Make information public by default
Constraint. The existing information source required an account and mixed durable guidance with real-time conversation.
Decision. Publish announcements, mechanics, and support guidance on the web while keeping staff editing authenticated.
Move from host deployment to reconciliation
Constraint. A pushed image still required a manual Docker Compose update and produced a short outage.
Decision. Use Kubernetes for replica management and Argo CD reconciliation so declared state, rather than an operator command, controls the running version.
Self-manage the cluster
Constraint. Managed Kubernetes services did not fit the operating budget, but multiple applications still needed scale, isolation, and shared delivery practices.
Decision. Build the platform on owned Ubuntu servers and accept the added networking, storage, policy, and maintenance work as a deliberate tradeoff.
Treat state as a first-class workload concern
Constraint. Game worlds, account data, and PostgreSQL cannot disappear when a pod is rescheduled.
Decision. Bind stateful services to Longhorn persistent volumes, expose only the required volumes through SFTP, and back claims up to object storage.
Development timeline.
Important revisions, technical pivots, and lessons from each stage.
01 / Product
Replaced a chat-only information model
The first milestone established a central Next.js site with announcements, wiki material, support guidance, rich-text editing, and role-aware content management.
02 / Container
Isolated the application from the host
A Docker image and GitHub Actions build removed the need to run the web application directly on the Ubuntu host, but updates still required a manual Compose refresh.
03 / Cluster
Expanded a short estimate into a platform build
A two-to-three-week estimate expanded to roughly two and a half months as the work grew to include cluster architecture, ingress, load balancing, storage, access, and policy.
04 / GitOps
Made image state declarative
Argo CD and image digest checks connected registry changes to controlled reconciliation, removing the manual update step from the normal release path.
05 / Services
Added durable game and operator services
Velocity, game workloads, PostgreSQL, SFTP, tunnel clients, persistent claims, backups, and least-privilege access became one managed ecosystem.
Results and system metrics.
Measurements, configuration boundaries, and outcomes that show the scope of the work.
Cluster shape
3 + 1 nodes
The generalized Calico configuration represents three control-plane nodes and one worker node.
Web workload
2 replicas
The current Helm deployment configures two Next.js replicas and an HPA range of one to four.
Edge layers
2–8 replicas
The NGINX/ModSecurity and Cloudflare tunnel layers each define a two-to-eight autoscaling range.
Platform build
≈2.5 months
Recorded duration for the Kubernetes platform and supporting services.
Image targets
amd64 + arm64
The production image workflow publishes both architectures from one Buildx job.
Implementation highlights.
Focused excerpts paired with the engineering behavior each one implements.
01Persist structured rich textsrc/components/Editor.js
The shared Draft.js editor converts content between the stored raw representation and an editable state, supporting both announcements and wiki content.
Open source file01if (rawContent === null) {02 this.state = {03 editorState: EditorState.createEmpty(),04 };05}06else {07 const contentState = convertFromRaw(rawContent);08 09 this.state = {10 editorState: EditorState.createWithContent(11 contentState12 ),13 };14}15 16const serializedContent = JSON.stringify(17 convertToRaw(editorState.getCurrentContent())18);02Publish one image for two CPU architectures.github/workflows/docker-deploy.yml
The production workflow uses Buildx to push both amd64 and arm64 variants, matching the mixed server architecture managed by the platform.
Open source file01- name: Set up Docker Buildx02 uses: docker/[email protected]03 04- name: Push Next Docker Image05 uses: docker/[email protected]06 with:07 context: ./08 file: ./prod.Dockerfile09 push: true10 platforms: linux/amd64,linux/arm6411 tags: |12 registry/redoxforge-web:commit13 registry/redoxforge-web:latest03Scale the Next.js workload inside boundshelm/templates/redoxforge-nextjs.yaml
The chart runs two initial web replicas and defines a CPU-driven horizontal autoscaler with explicit minimum and maximum capacity.
Open source file01apiVersion: autoscaling/v202kind: HorizontalPodAutoscaler03metadata:04 name: nextjs-hpa05spec:06 scaleTargetRef:07 apiVersion: apps/v108 kind: Deployment09 name: nextjs10 minReplicas: 111 maxReplicas: 412 metrics:13 - type: Resource14 resource:15 name: cpu16 target:17 type: Utilization18 averageUtilization: 5004Remove unnecessary container privilegeshelm/templates/redoxforge-nextjs.yaml
The deployment disables service-account token mounting, runs as a non-root user, prevents privilege escalation, and drops every Linux capability.
Open source file01spec:02 automountServiceAccountToken: false03 containers:04 - name: nextjs05 securityContext:06 runAsUser: 100007 runAsGroup: 100008 runAsNonRoot: true09 allowPrivilegeEscalation: false10 privileged: false11 capabilities:12 drop:13 - ALL05Start namespace traffic from default denyredoxforge-mc/templates/default/default-network-policy.yaml
The game workload namespace begins with a deny-all policy. Separate policies then grant only the required Velocity, game-server, database, SFTP, and tunnel paths.
01apiVersion: networking.k8s.io/v102kind: NetworkPolicy03metadata:04 name: default-deny-all05spec:06 podSelector: {}07 policyTypes:08 - Ingress09 - EgressProject media.

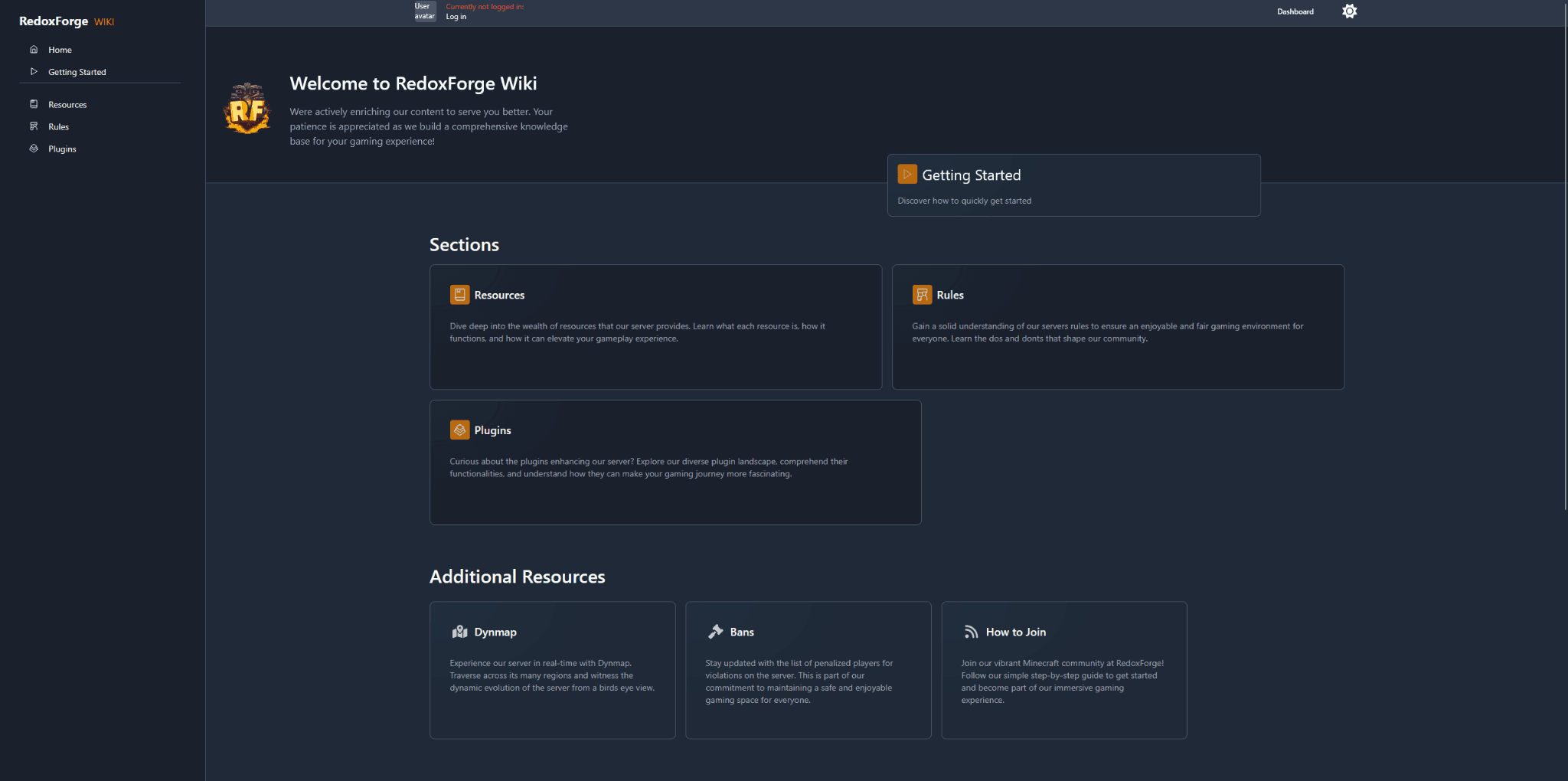

Selected screenshots and evaluation artifacts from the project.
Sources and boundaries.
Public links open in a new tab. Private code and project artifacts are summarized without exposing infrastructure details or credentials.
